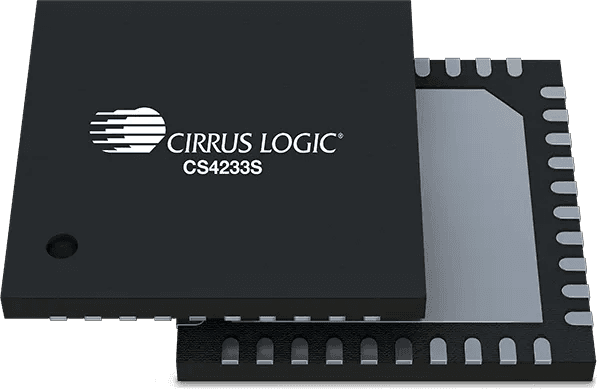

CS4233S

High-performance stereo audio codec
View Datasheet (opens in new tab)

CS4233S Overview

The CS4233S is part of a new series of pro-audio converters aimed at giving cost-effective transparent audio conversion. All within one device that is easy to use and provides system level cost savings. The CS4233S is a high-performance, 32-bit resolution, stereo Codec. The CS5312S supports differential analog input/outputs and 32-bit digital output/inputs via the audio serial port (ASP) at sample rates up to 384 kHz. The ADC uses a 5th-order, multibit sigma-delta modulator followed by digital filtering and decimation. This provides a dynamic range of over 116 dB and THD+N below -110 dB all within a 25 mW/ch power budget. The voltage-output DAC incorporates a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of over 118 dB and THD+N below -109 dB. The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making it both flexible and easy to integrate. This, together with Cirrus Logic’s analog gain feature, makes the CS4233S ideal for digital mixing consoles, DAW interfaces, effects processors, musical instruments and audio/video receivers.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance stereo codec

    • Differential analog inputs/outputs

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • Crystal oscillator interface

  • Sample timing alignment across multiple devices

  • Hybrid gain control (HGC)

    • Synchronized control of external analog, and internal analog and digital gain

  • Virtual passive attenuation device (PAD)

  • Clip detection

  • Signal activity detection

  • Audio serial port (ASP) sample rates up to 384 kHz

    • I2S, left-justified, and TDM data formats

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Analog Input TypeDifferential
Analog Output TypeDifferential
Channels In2
Channels Out2
Control InterfaceSPI/I²C
ADC Dynamic Range (dB)116
DAC Dynamic Range (dB)118
ADC THD+N (dB)-110
DAC THD+N (dB)-109
Sample Rate (kHz)384
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Target MarketPro Audio
Package40 QFN

Design Resources

Browse all resources

Evaluation Boards

  • CS4233S Audio Codec Evaluation Board (DC4233S-CODEC)

    The DC4233S-CODEC evaluates the Cirrus Logic CS4233S and CS4233B high-performance two-channel audio codecs. A daughter card for the CDB-PROAUDIO system, it provides analog I/O buffering, selectable clocking sources, and hardware or software control.

    Order SampleUser Guide
  • Pro Audio Evaluation System (CDB-PROAUDIO)

    Pro Audio Evaluation System (CDB-PROAUDIO)

    The CDB-PROAUDIO is the motherboard platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides analog and S/PDIF I/O, 8-channel USB streaming via the Jura module, and accepts device-specific daughter cards.

    Order SampleUser Guide
  • ETLUM2-SOM USB Control Audio Streaming Board

    ETLUM2-SOM USB Control Audio Streaming Board

    Order Sample

Software Packages
